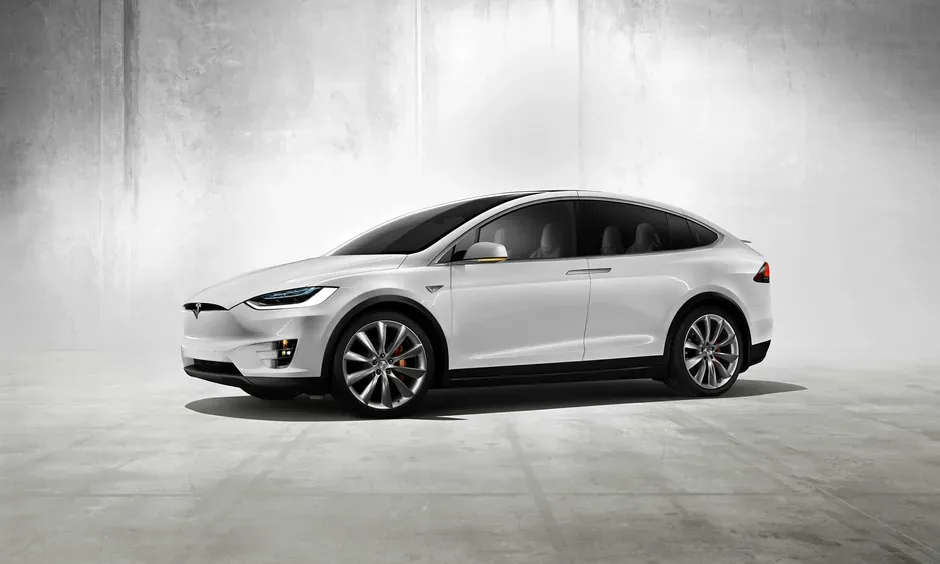

Among all the Tesla models we service at 510 Glen Iris Dr NE, the Model X windshield replacement stands apart in one specific way: the sheer size of the glass. The Model X windshield is not just large — it is one of the largest single-piece windshields in production anywhere in the automotive market. That fact drives nearly every aspect of how the job is done, how long it takes, and what it costs.
The windshield that extends overhead
Tesla designed the Model X with a dramatically raked windshield that does not stop at the roofline. It continues upward, curving back over the front seats and occupying what would be part of the headliner area in most other vehicles. From inside the vehicle, a front seat occupant looks through this glass both straight ahead and partially overhead.
The result is an enormous single-piece windshield that wraps across the full front of the vehicle and curves up into the overhead area. This is what makes the Model X windshield a genuinely different job from the Model 3, Model Y, or even the Model S. The glass is substantially larger, heavier, and more difficult to handle than any of those vehicles’ windshields.
Removing the old glass and installing the new pane requires powered suction lifters with extended reach that can support the glass through its full range of motion as it comes out and goes back in. Standard auto glass suction equipment is not adequate for this job. Getting the glass off-angle during removal or installation risks cracking the replacement pane before it is even seated, which is an expensive way to find out that a shop was not properly equipped.
We handle Model X windshield work in our Midtown shop where we have the space and equipment to do the job safely. We can also bring a properly-equipped mobile unit to your location for Model X work, though in-shop is generally the better environment for a glass panel this size.
What the windshield size means for chip and crack decisions
On a Model 3 or Model Y, damage in the lower portion of the windshield — near the dashboard level — is away from the forward camera housing and is often repairable with resin. The camera cluster sits at the top center, and there is meaningful real estate between the camera zone and the bottom of the glass.
The Model X’s extended glass surface changes this dynamic. The windshield covers a much larger total area, and that extended overhead portion is not a separate piece — it is all one glass panel. Damage anywhere on the windshield surface is potentially within a zone that affects the vehicle’s structural integrity more broadly, because the glass is carrying more load across more area.
Chips under roughly one inch, away from the top-center camera zone and not at the glass edge, are still candidates for resin repair. But given the Model X’s overall glass area and the consequences of a repair failure in that overhead section, we apply a more conservative standard. When a chip is in an ambiguous location on a Model X, replacement is the more appropriate call.
Spreading cracks on a Model X need to be addressed quickly. A crack that runs across the overhead portion of the glass is in a structurally significant zone and compromises the vehicle’s cabin integrity in ways that a crack in the lower glass of a smaller vehicle does not.
Camera calibration on the Model X
Despite the dramatically larger glass size, the Model X’s forward camera cluster is in the same basic location as other Tesla models: behind the rearview mirror housing, at the top center of the windshield. Three cameras handle forward-facing Autopilot functions — narrow-angle for long range, main camera for standard range, and fisheye for close-range awareness.
The calibration process after a Model X windshield replacement follows the same pattern as other Tesla models. Static calibration is done in-shop: camera mount position verified, sensors reconnected and confirmed. Dynamic calibration runs during the first 25 to 50 miles of driving as the cameras use road reference points to finalize their angular values. Autopilot and Full Self-Driving features are restricted during the dynamic window.
One additional consideration on the Model X: because the total glass surface the cameras are looking through is so large, any optical variation in the pane is more likely to fall within the camera field of view than on smaller windshields. This is another reason we are careful about glass selection for this vehicle and use OEM or closely-matched glass rather than unverified aftermarket panes.
A note about the Falcon Wing doors
The Model X’s rear Falcon Wing doors are an unusual engineering feature and a common subject of owner questions when the vehicle needs service. The Falcon Wing doors open upward in two stages, allowing rear access in tight parking spaces. They are entirely separate from the windshield and have no mechanical or structural connection to the front glass panel.
A windshield replacement on a Model X does not involve the Falcon Wing doors at all. If you have a Falcon Wing door issue — sensors, alignment, hydraulic problems — that is a separate service that we do not perform. The windshield job is front-end work only.
Cost and lead time for Model X glass
The Model X has the most expensive windshield of any Tesla model except the Cybertruck. Several factors contribute:
The glass itself is a large specialty piece. Production volumes for the Model X are substantially lower than the Model 3 or Model Y, which means aftermarket glass availability is limited and less consistent. We generally use OEM glass for Model X jobs, which carries a higher unit cost and sometimes a longer lead time.
The installation takes longer. Moving and positioning a windshield of this size requires more time and more caution than a standard replacement. The cure phase is the same 60 to 90 minutes, but the total job time from start to drive-away is typically two to three hours or more.
Given the higher cost, comprehensive auto insurance is particularly worth having on a Model X. We handle insurance claims coordination directly with all major carriers. See our insurance claim guide for a rundown of how the process works.
Protecting the Model X windshield
The Model X’s upright front profile and large glass area create a broader target for highway debris than the Model 3’s sloped sedan profile. The overhead section of the windshield is exposed to falling debris in ways that most windshields are not — tree limbs in wooded suburban areas, parking structure debris, and hail all have a larger glass surface to hit.
Park under cover when possible. The large glass surface has proportionally more exposure to hail events, which are not rare in Atlanta. A dented roof is inconvenient; a cracked Model X windshield at replacement cost is a significantly larger problem.
Keep distance from trucks on Metro Atlanta highways. I-285, I-75, GA-400 — the debris-from-trucks problem that affects all Tesla sedan owners affects the Model X as well, compounded by the larger target area.
Address any chips quickly. The overhead glass section experiences more varied stress than the lower windshield area, and chips there have less predictable spreading behavior.
Service overview
| Service | Time estimate |
|---|---|
| Chip repair (under 1 inch, not in camera zone) | 25 to 35 minutes |
| Full replacement (glass, adhesive, calibration) | 2 to 3 hours |
| Adhesive cure before driving | 60 to 90 minutes additional |
We perform Model X windshield repair and replacement at 510 Glen Iris Dr NE. ADAS calibration is included with every replacement.
Frequently asked questions
Is the Model X windshield really that much larger than other Teslas?
Yes. The windshield extends from the hood up and over the front seats in one continuous piece. It is one of the largest production windshields in the passenger vehicle market. The glass is heavier, harder to handle, and requires specialty lift equipment that standard auto glass shops may not have.
Do you do mobile service for Model X windshields?
Yes, with a fully-equipped mobile unit that includes powered suction lifters appropriate for the glass size. In-shop is generally preferable for the Model X, but mobile service is available.
Why does Model X windshield replacement cost more than the Model 3 or Y?
Glass cost is higher for a specialty large-format piece produced in lower volumes. Installation takes longer. Equipment requirements are more demanding. These factors compound to produce a higher total cost.
Does the Model X need the same Autopilot calibration as other Teslas?
Yes. The forward camera system and recalibration requirements are the same. Static check in-shop, then dynamic calibration during the first 25 to 50 miles of driving.
Can a chip anywhere on the Model X windshield be repaired?
Small chips away from the camera zone and glass edge are candidates for resin repair. Given the overhead glass area on the Model X, we apply a conservative standard and lean toward replacement more readily than on smaller windshields where the structural stakes are lower.
